Mastech TRIPLE LINEAR DC POWER SUPPLY 30V 5A HY3005F-3
Mastech TRIPLE LINEAR DC POWER SUPPLY 30V 5A HY3005F-3 Review
 |
|
| Brand: | |
| List Price: | |
| Our Price: | |
| Total Price: |
|
| Usually ships in 1-2 business days | |
- Dual adjustable outputs: 0-30V and 0-5A
- Fixed output: 5V and 3A
- Line regulation: CV <= 0.01% + 2 mV, CC <= 0.2% + 2 mA>
- Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
- Display reading accuracy: +/-1% for voltage and +/-2% for current

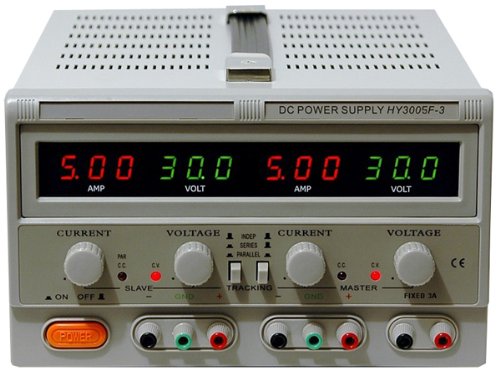

Mastech Power Supply HY3005F-3 is a =regulated power supply with triple outputs. This high quality linear power supply has three outputs: two outputs are continuously adjustable at 0-30V DC and 0-5A, and the third output is fixed at 5V DC and 3A. What's more, the two outputs can be used either in independent, series or parallel mode, providing either two independent outputs, or one output with twice the voltage or twice the current output, up to 60V or 10A. The unit comes with 4 color LED displays, providing accurate and clearly visible readout for the voltage and current value. LED displays are new trend in instrumentation, because they are more durable and easily visible even in dark environment. This unit has toggle switch at the back that allows you to operate it in 110V AC or 220V AC. retails well over 0. Please email us with any questions, our hard-working staff will answer every email in no time!
Features & Specifications:
Easy control for both current and voltage outputs
Dual adjustable outputs: 0-30V and 0-5A
Fixed output: 5V and 3A
Input voltage: 110V AC and 220V AC switchable
Line regulation: CV <= 0.01% + 2 mV, CC <= 0.2% + 2 mA>
Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA
Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS
Protection: constant current and short-circuit protection
Display reading accuracy: +/-1% for voltage and +/-2% for current
Environment: 0-40C, relative humidity < 90%
Size: 14" x 10" x 8"
Weight: 25 lbs
Warranty: 1 year
